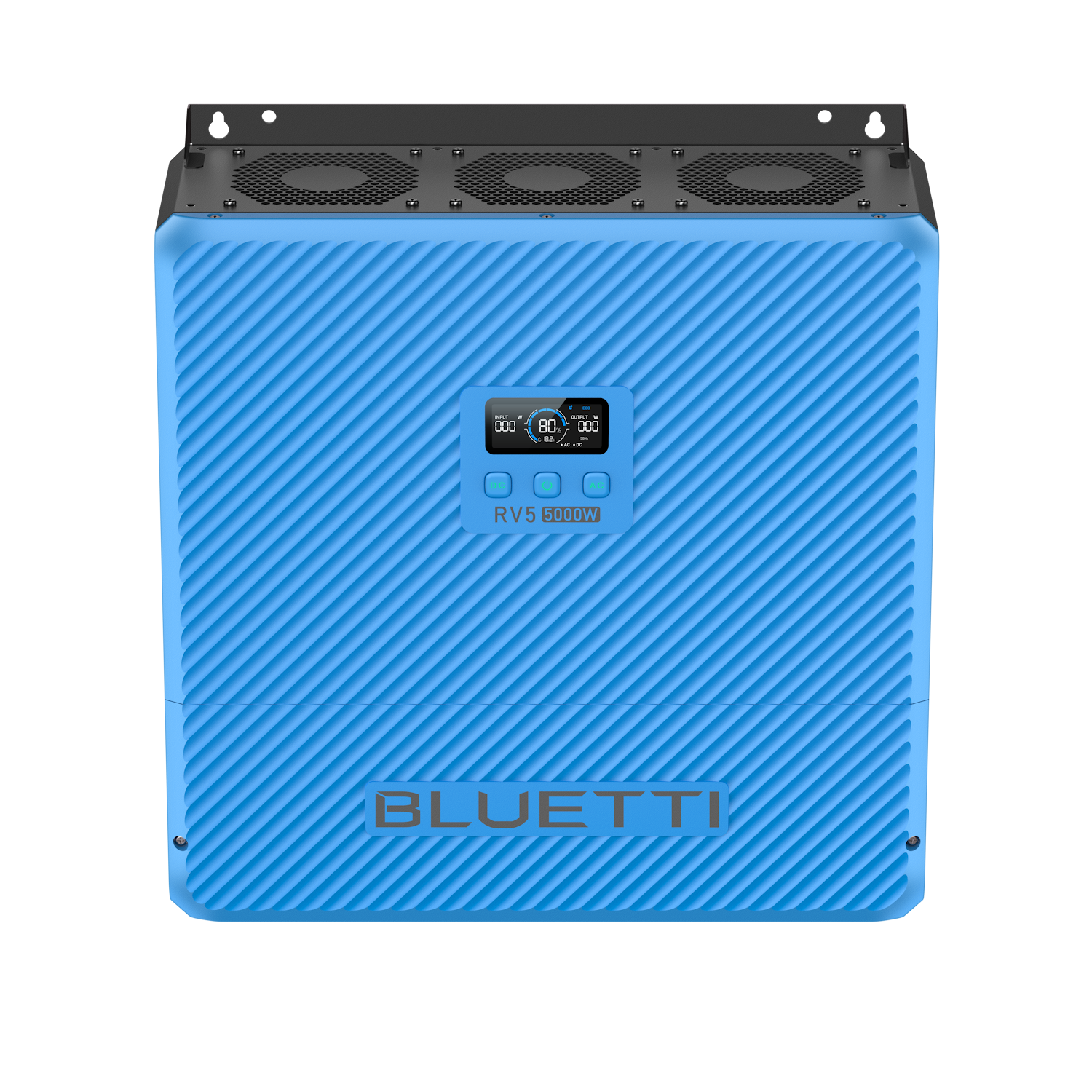

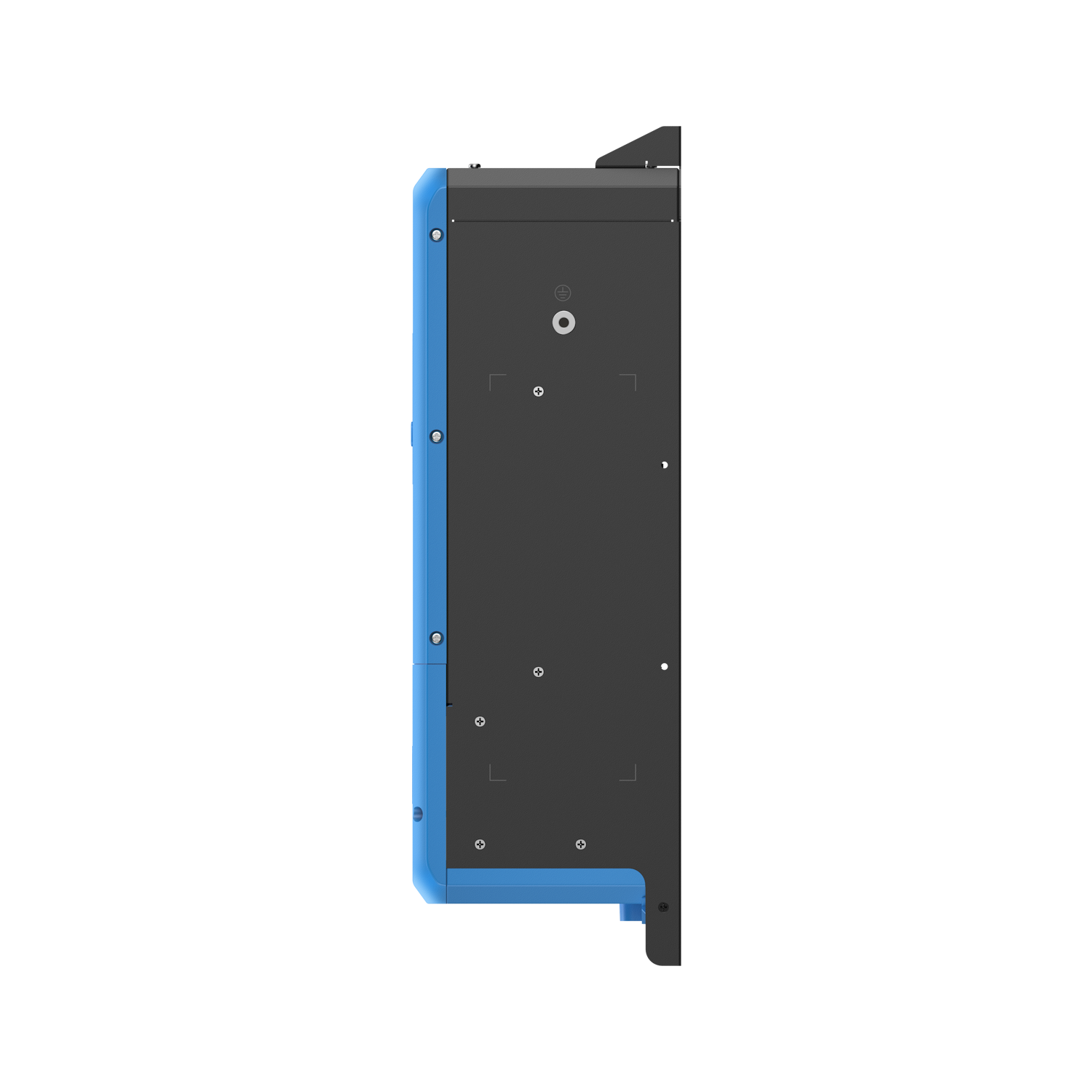

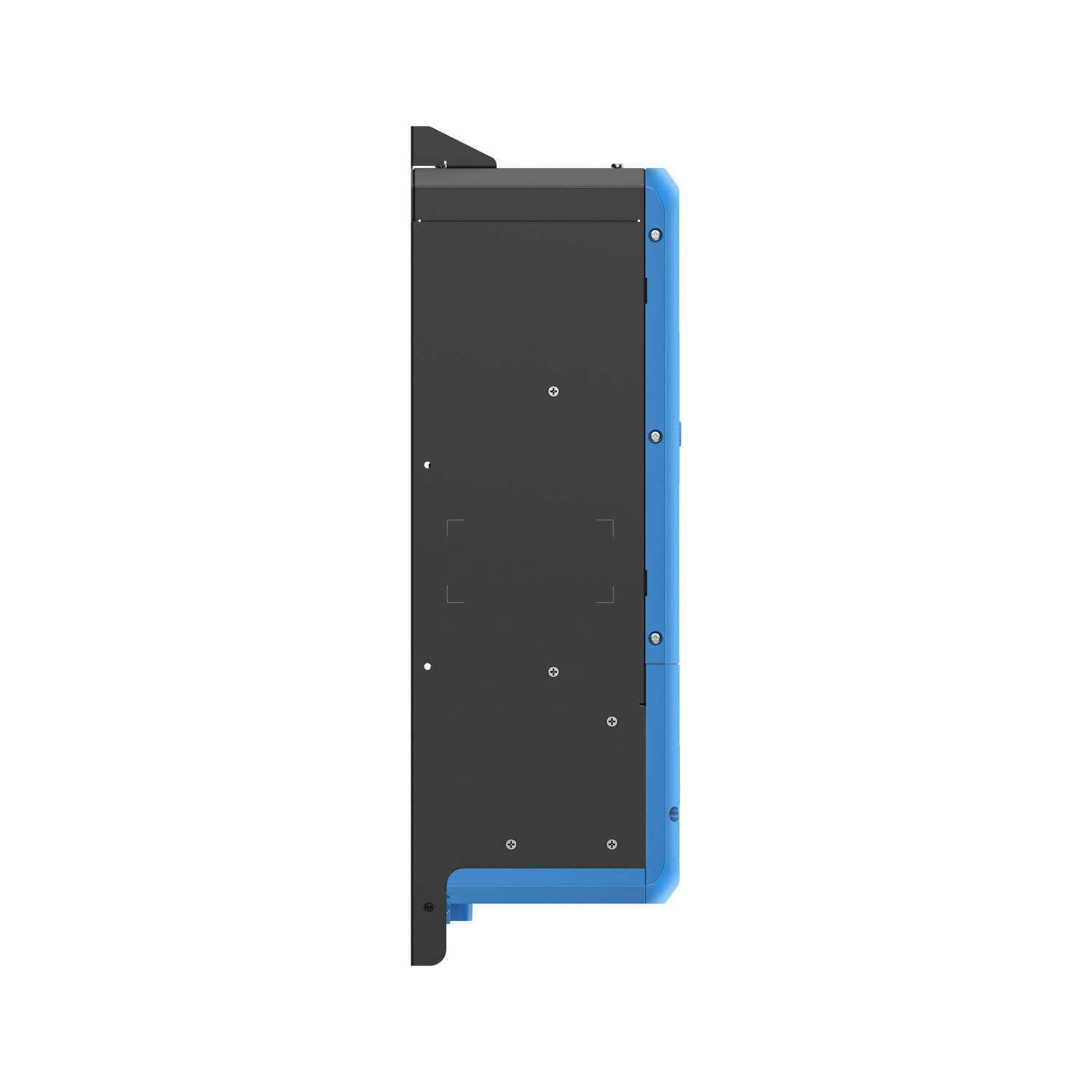

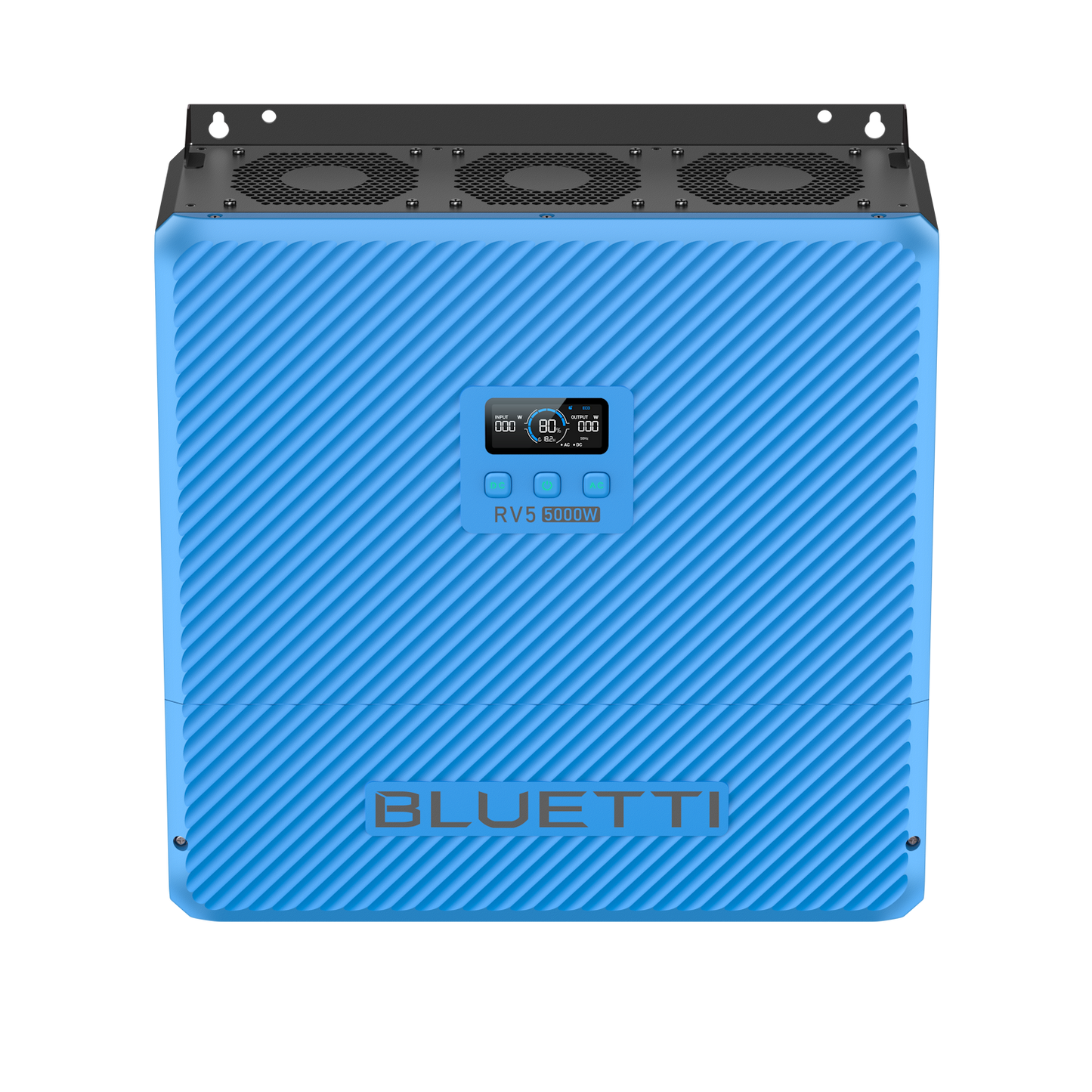

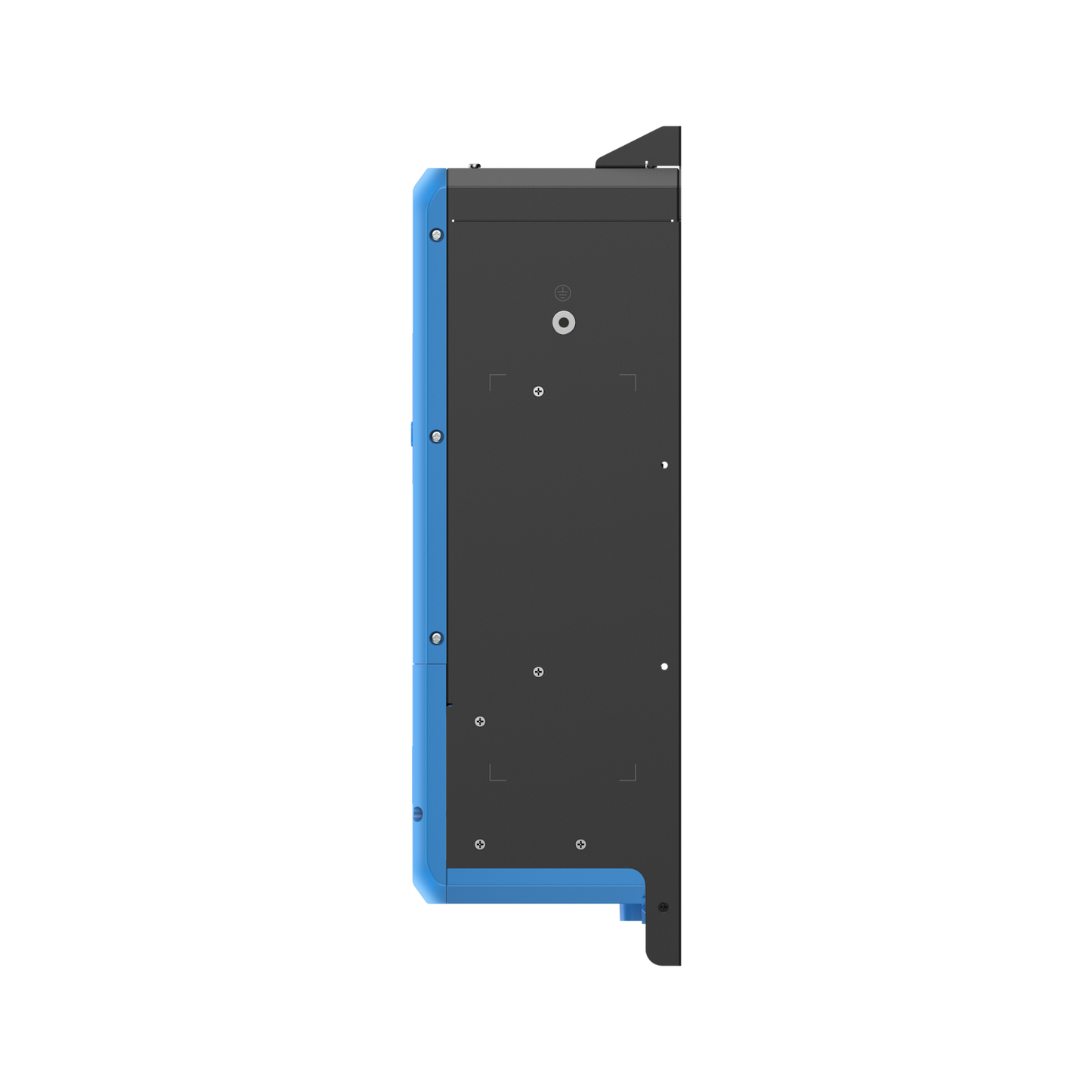

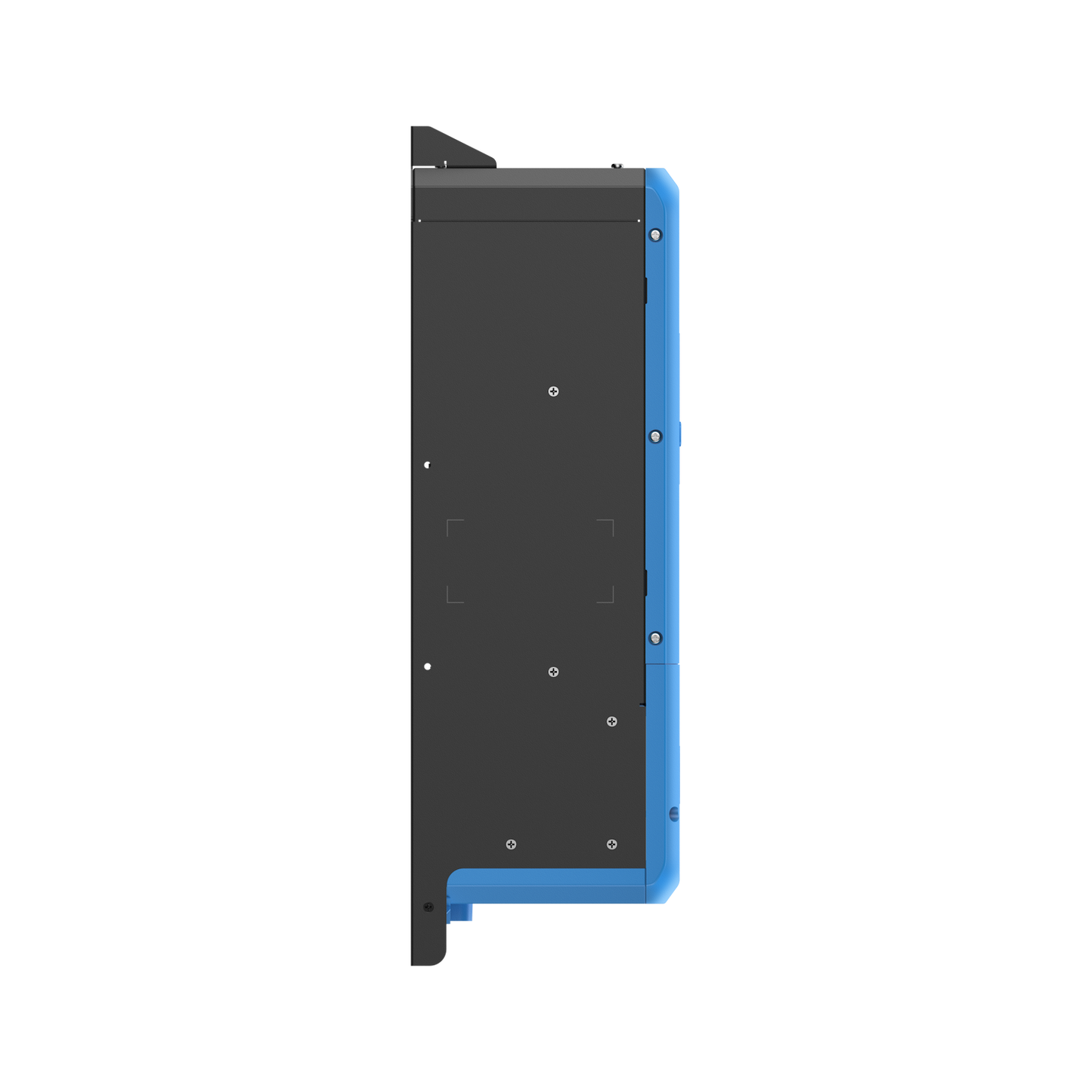

BLUETTI RV5 — 5000W Pure Sine Wave Inverter

BLUETTI RV5 — 5,000W Pure Sine Wave 48V Power Hub

The BLUETTI RV5 is a 5-in-1 power hub built for high-demand RVs, boats, and off-grid homes. It combines an inverter, MPPT solar charge controller, DC-DC converter, alternator charger, and circuit protection module in a single compact unit — eliminating the wiring complexity of traditional 12V RV electrical systems. With 5,000W continuous output (6,000W total load), automatic system recognition, and a 30-minute install time, the RV5 transforms your rig into a true off-grid powerhouse without the typical learning curve.

Key Specs

• Continuous AC Output: 5,000W (pure sine wave)
• Total Load Power: 6,000W max (depends on battery configuration)
• AC Input Voltage: 120V (US/CA) — 5,000W max input
• AC Output Voltage: 120V (US/CA), 42A at 120V
• UPS Switchover: ≤20ms
• Solar Input (PV1/PV2): 1,800W max, 12V-50V, 50A max — built-in MPPT
• Vehicle Battery Input (PV2): 600W (12V) or 1,200W (24V), 50A max
• DC Output: 12V (100A, 1,360W) or 24V (60A, 1,620W)
• Multiple Charging Sources: 5,000W AC/shore power · 5,000W generator · 3,600W solar · 2,400W car alternator
• Auto-Recognition Design: System self-configures by detecting voltage and current — 5-step install
• Connectivity: Wi-Fi + Bluetooth, real-time remote control, energy usage tracking, customizable settings
• Communication: BLUETTI CAN port, third-party CAN (NMEA 2000, RV-C compatible), RV/generator start port, temp/liquid level sensors
• Weight: 30.86 lbs (14 kg)
• Dimensions: 17.72 × 19.69 × 6.30 in (450 × 500 × 159.9 mm)
• Operating Temperature: -4°F to 131°F
• Operating Humidity: 95% max
• Certification: UL458
• Warranty: 5 years

What It Can Power

• Air conditioner
• Microwave oven
• Water heater
• Hair dryer
• Coffee maker
• Refrigerator
• Lights, mobile phones, water pump, projector
• Full RV electrical system (replaces traditional 12V converter, inverter, solar controller, alternator charger)

Why the 48V System Wins Over 12V

• 17-year lifespan with self-heating LiFePO4 (vs 5-8 years for typical lead-acid)
• Silent operation — no generator noise
• Campground freedom — no shore-power dependency
• Maintenance-free with auto-configuration
• Cost-effective over the system lifetime

Pairs Well With (5-Component RV Solar System)

• BLUETTI B4810 — 48V 100Ah LiFePO4 Battery — 5,120Wh, self-heating to -4°F, IP65 rated, scales up to 24 batteries (122kWh)
• BLUETTI ePad Central Control Screen — 10.1" LCD touchscreen for real-time system monitoring
• BLUETTI ePanel Smart Distribution Panel — separate AC and DC circuit control with smart-load management
• BLUETTI PV100FX 100W Flexible Solar Panel — lightweight, fits curved RV surfaces
• BLUETTI RV5 Standard Package — RV5 + B4810 bundle
• BLUETTI RV5 Whole House Smart Package — complete system with ePanel + ePad

Designing a complete off-grid or RV electrical system? Use our free System Build Helper to see a compatible kit with proper wiring, fuses, and component sizing — or the Power Calculator to size your daily Wh needs.

Warranty & Support

BLUETTI 5-year manufacturer warranty (2-year on accessory items like ePad). TrailVault is an authorized BLUETTI dealer — full warranty support, genuine products, and direct human contact at joel@trailvault.co.
