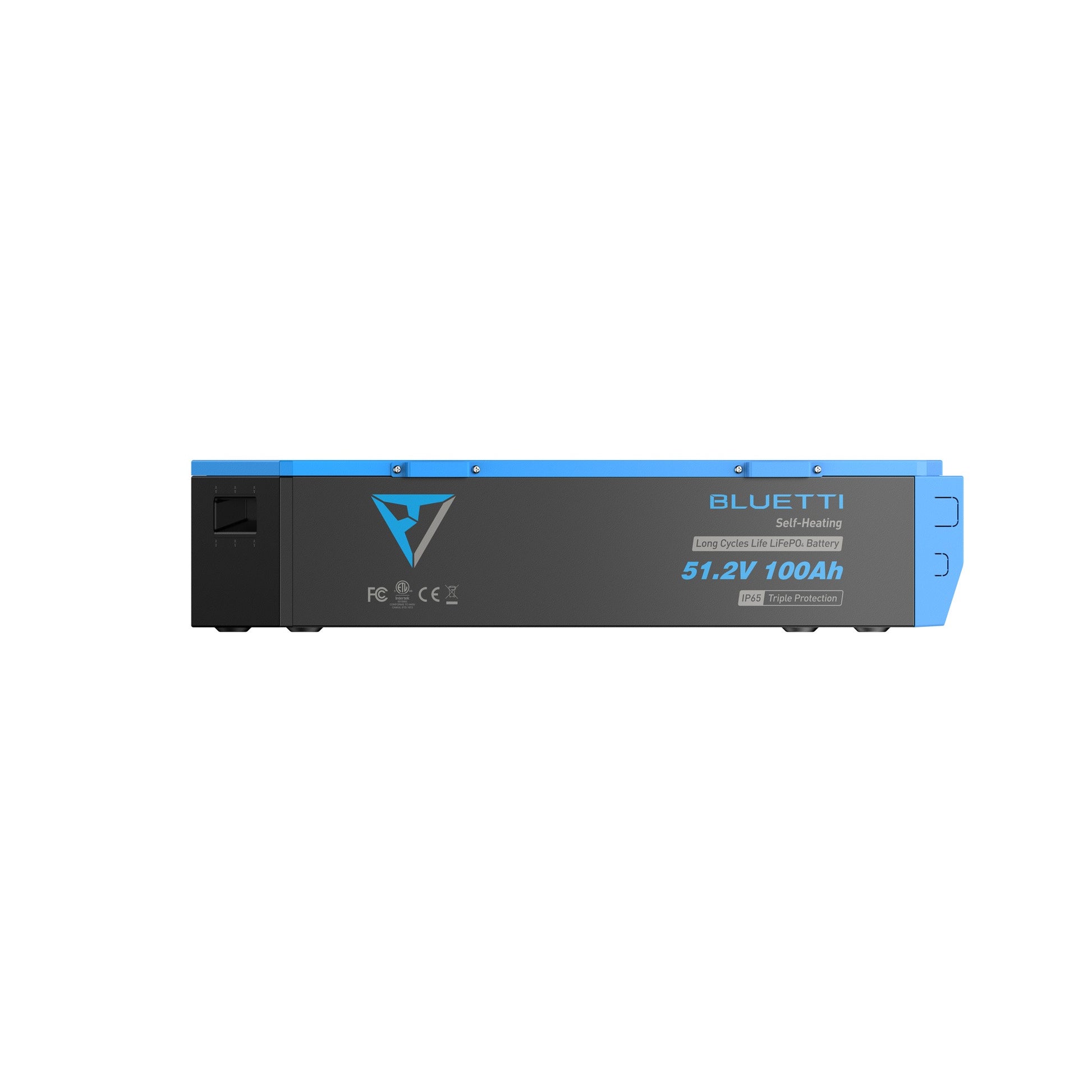

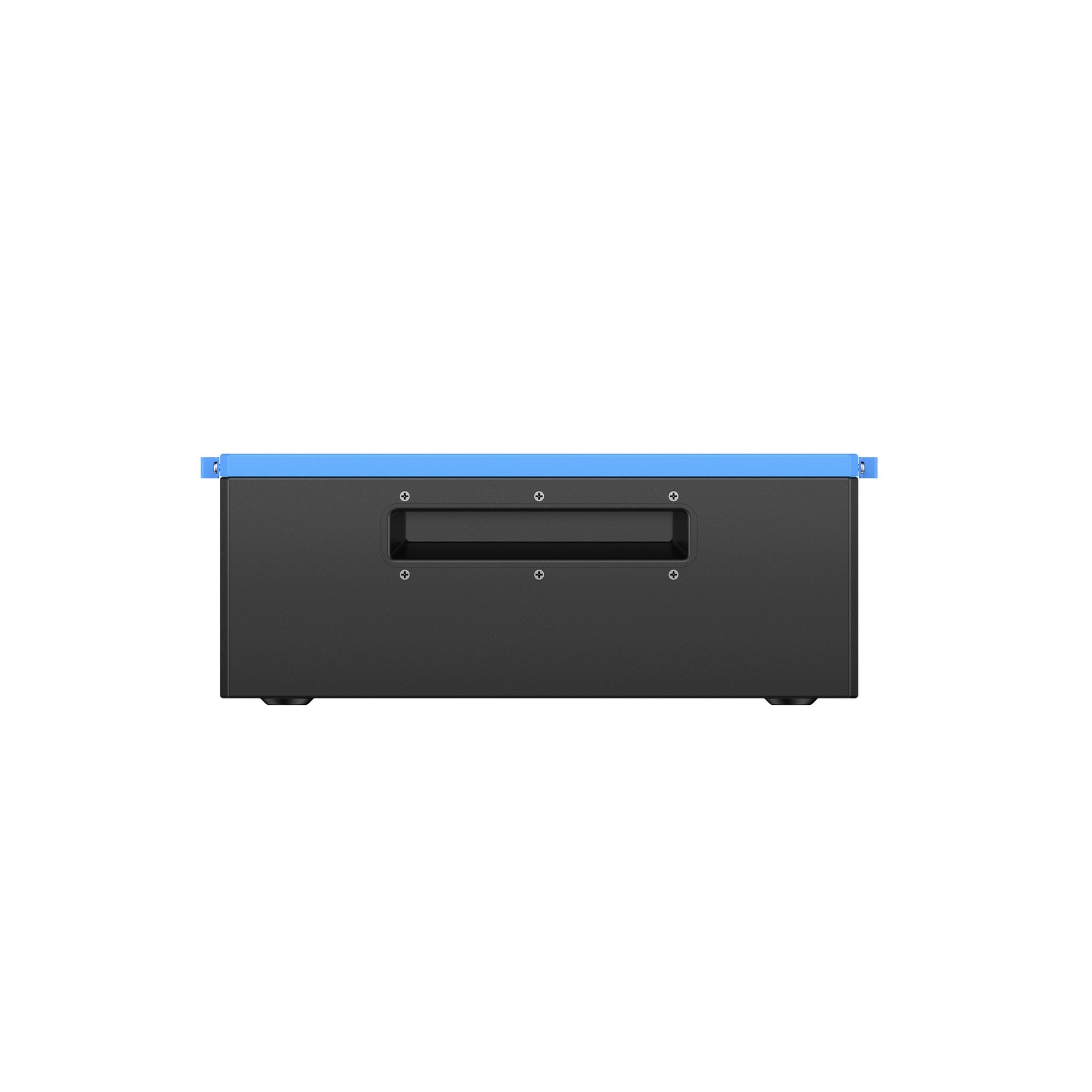

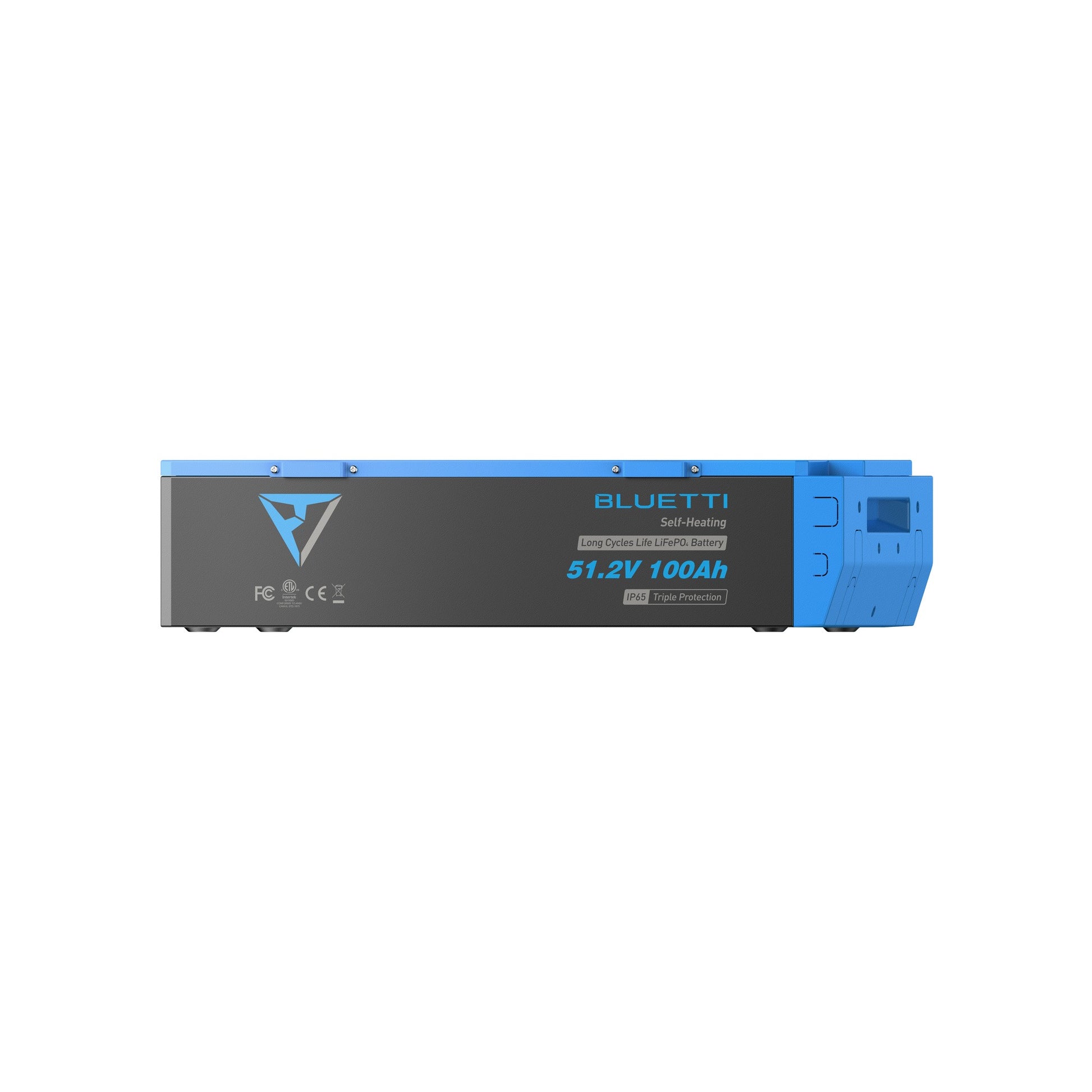

BLUETTI B4810 — 5120Wh LiFePO4 Battery Module

BLUETTI B4810 — 5,120Wh 48V LiFePO4 Battery Module

The B4810 is the high-capacity 48V LiFePO4 battery module purpose-built for BLUETTI's RV5 power hub and other 48V system installations. With 5,120Wh of LiFePO4 storage, 6,000+ cycle life to 80% capacity (~17 years of typical RV use), and built-in self-heating for cold-weather operation down to -4°F, it's designed for serious RV, off-grid, and home backup builds. IP65 protection means it survives the weather-exposed installations that typical lithium batteries can't handle.

Key Specs

• Voltage: 51.2V (48V nominal)
• Capacity: 5,120Wh (100Ah)
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Cycle Life: 6,000+ cycles to 80% original capacity
• Scalability: Up to 24 batteries in parallel (122kWh total)
• Max. Continuous Discharge Current: 100A
• Self-Heating: Yes — operates reliably down to -4°F (-20°C)
• Charging Temperature: 32°F to 104°F (0°C to 40°C)
• Discharging Temperature: -4°F to 104°F (-20°C to 40°C)
• Storage Temperature: -4°F to 104°F (-20°C to 40°C)
• Operating Humidity: 5-95% RH
• Protection Rating: IP65 (weather-resistant)
• Weight: 103 lbs (47 kg)
• Communication: Bluetooth + RJ45 (CAN)
• Warranty: 5 years

Pairs Well With

• BLUETTI RV5 — 5,000W Pure Sine Wave Power Hub — direct compatibility, 48V system
• BLUETTI ePad Central Control Screen — system monitoring for the RV5 + B4810 setup
• BLUETTI ePanel Smart Distribution Panel — AC + DC circuit management
• BLUETTI RV5 Standard Package — bundles RV5 + B4810

Not sure what size you need? Use our free Power Station Size Calculator to get a personalized recommendation in under 2 minutes.

Warranty & Support

5-year BLUETTI manufacturer warranty. TrailVault is an authorized BLUETTI dealer — full warranty support, genuine products, and direct human contact at joel@trailvault.co.
