BLUETTI ePad — System Monitoring Pad

BLUETTI ePad — Central Control Screen for BLUETTI Power Systems

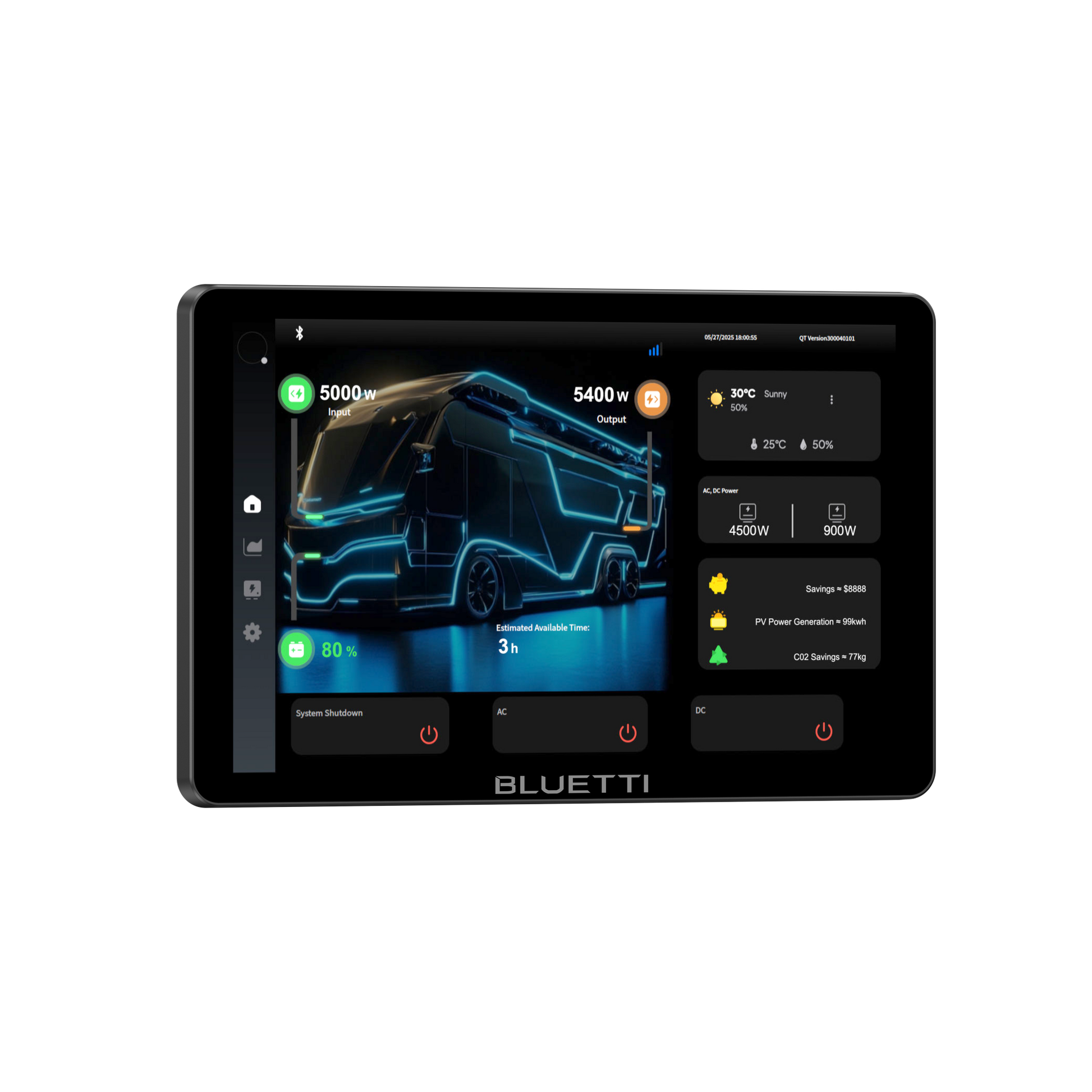

The ePad is a 10.1-inch LCD touchscreen control panel for BLUETTI's RV5, EnergyPro, and integrated power systems. Real-time system monitoring at a glance — battery state of charge, solar input, AC consumption, generator status — with remote control of system parameters from a single mounted display. Supports BLUETTI CAN, NMEA 2000, and RV-C protocols, integrating cleanly with both BLUETTI and third-party RV/marine systems.

Key Specs

• Display: 10.1" LCD color touchscreen
• Resolution: 800 × 1280
• Power Input: USB-C 5V/3A (15W) or RJ45 12-60V/1.5A (integrated power + data)

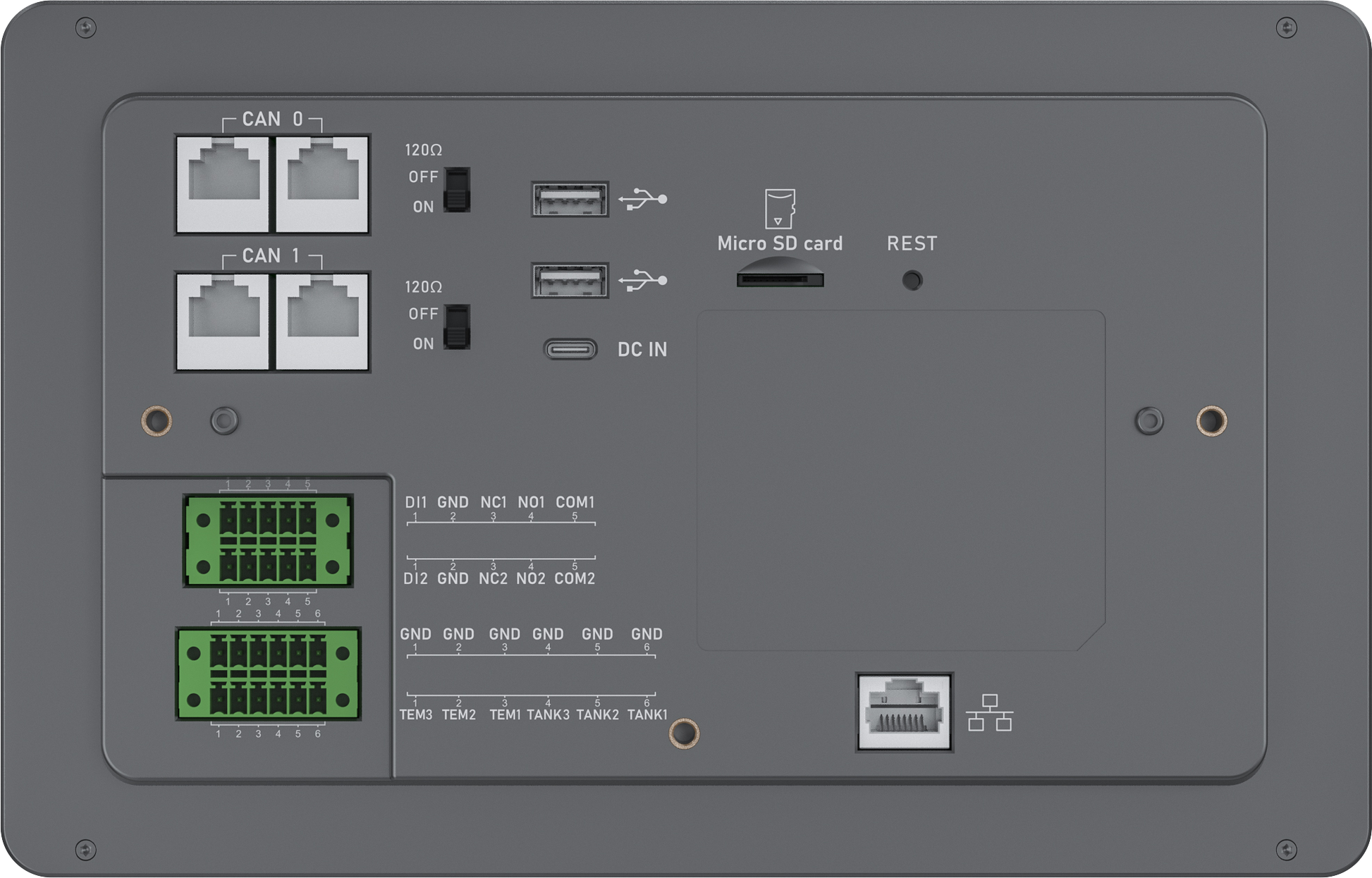

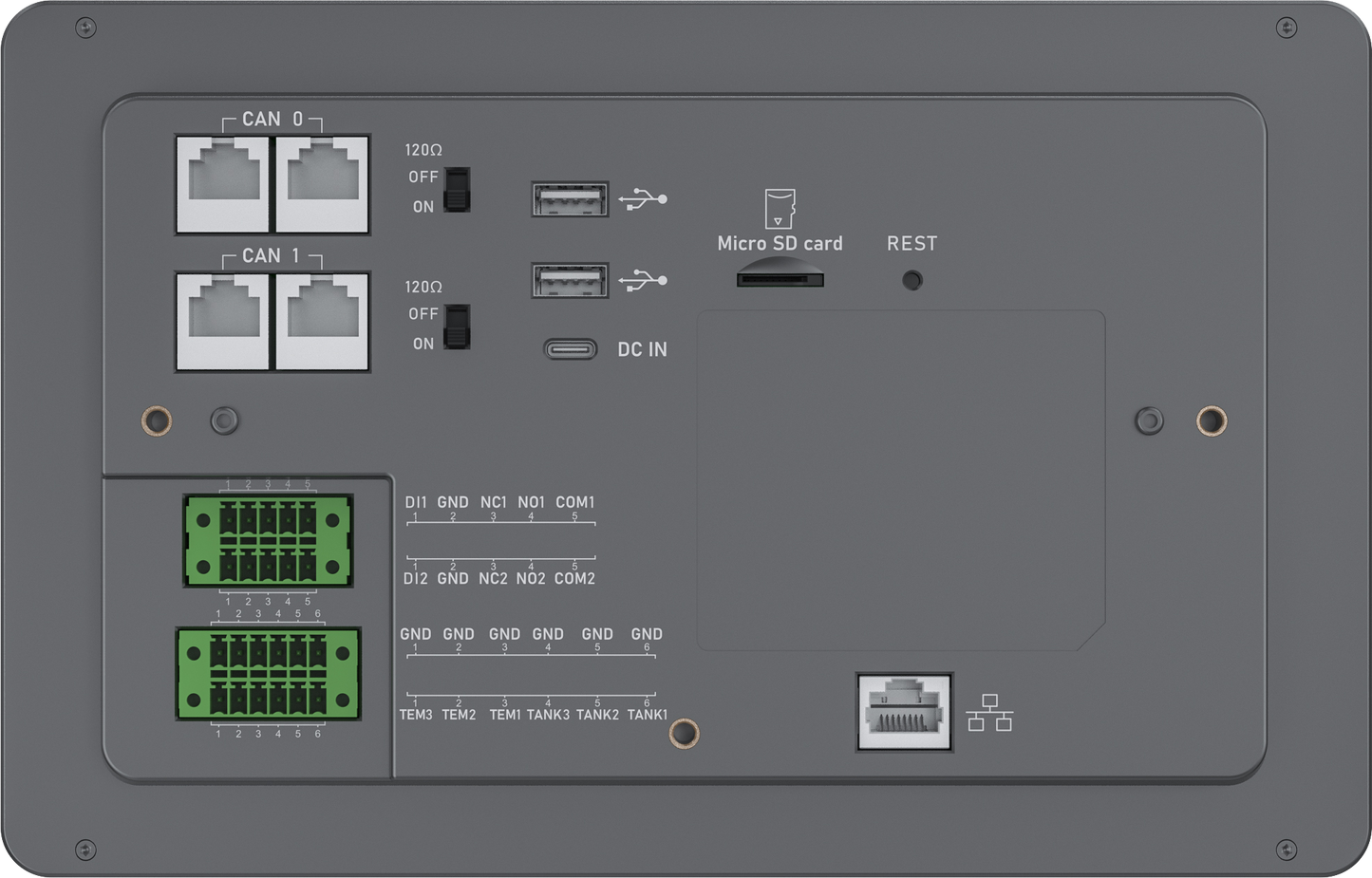

• Communication Interfaces: BLUETTI CAN, Expand BUS (NMEA 2000, RV-C protocols), Ethernet RJ45 (10/100Mbps), USB-A (5V/1.5A for power + data/updates), MicroSD slot (up to 32GB)
• Sensor Inputs: 3× Temperature sensor (-20°C to 70°C), 3× Liquid level sensor (0-100% range), 2× DI (smoke/CO concentration alarm)
• Control Inputs: 2× Relay (generator ignition signal / thermal protection)
• Dimensions (H × W × D): 9.7 × 6.2 × 1.3 in (247 × 158 × 33.9 mm)
• Weight: 1.48 lbs (0.67 kg)
• Protection Rating: IP20
• Warranty: 2 years

What You Can Monitor and Control

• Battery state of charge (per battery and total)
• Solar input (PV1/PV2) and total daily generation
• AC and DC consumption
• Generator status and remote start
• Temperature and liquid-level sensors (for tanks, battery compartments)
• Smoke and CO alarms via integrated DI
• Energy usage tracking and custom alerts

Pairs Well With

• BLUETTI RV5 — 5,000W Power Hub — the primary integration
• BLUETTI B4810 — 5,120Wh Battery — monitor state of charge in real time
• BLUETTI ePanel Smart Distribution Panel — circuit-level control
• BLUETTI RV5 Whole House Smart Package — bundles RV5 + B4810 + ePanel + ePad

Not sure what size you need? Use our free Power Station Size Calculator to get a personalized recommendation in under 2 minutes.

Warranty & Support

2-year BLUETTI manufacturer warranty. TrailVault is an authorized BLUETTI dealer — full warranty support, genuine products, and direct human contact at joel@trailvault.co.
