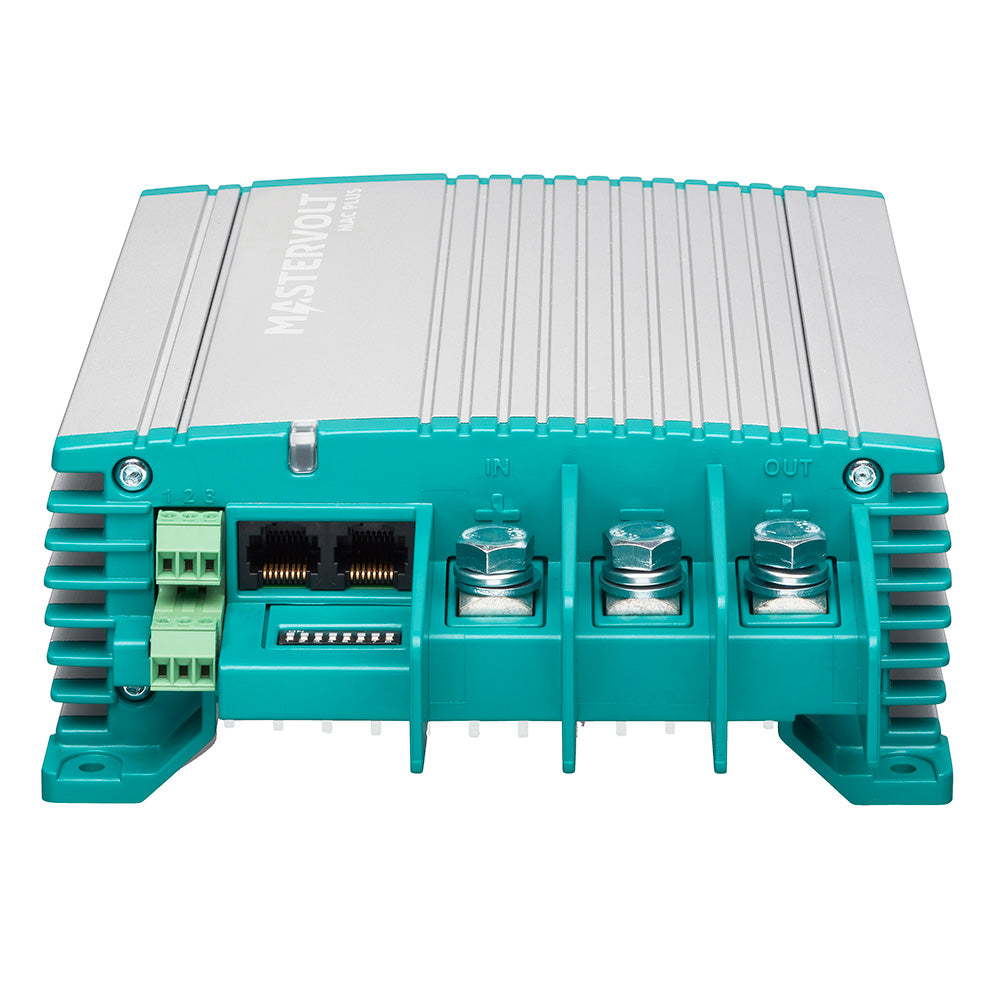

Mastervolt MAC Plus 12/12-50 CZone

Mastervolt MAC Plus 12/12-50 + CZone — 50A DC-DC Charger

Intelligent 12V-to-12V DC-DC charger with 50A output. Charges your house battery from your alternator with LiFePO4-optimized multi-stage charging. A premium alternative to the Victron Orion XS for serious van and off-grid builds.

Key Features

• 50A continuous charging output — fast house-battery replenishment from the alternator
• LiFePO4 charge profile (along with AGM, gel, and flooded profiles)
• CZone compatible — integrates with digital monitoring/switching
• Automatic load management — protects the alternator from being over-drawn
• Marine/mobile IP rating for rugged installs

Specifications

Ideal For

• Van and RV builds that want LiFePO4 charging via the alternator
• Mid-to-large 12V house banks (200Ah+)
• Builds already using the Mastervolt inverter/charger + MasterShunt ecosystem

Frequently Asked Questions

How is the MAC Plus different from the Victron Orion XS?
Both are 50A 12V-to-12V DC-DC chargers with LiFePO4 profiles. The MAC Plus adds CZone/digital-switching integration and automatic alternator load management — the right pick for a fully networked Mastervolt build. The Victron Orion XS is the simpler, Bluetooth-app pick for a standalone install.

What size battery bank does the 50A MAC Plus suit?
Mid-to-large 12V banks, typically 200Ah and up. A common rule of thumb is a charge current of 20–50% of the bank's amp-hours, so 50A pairs well with ~100–250Ah of LiFePO4.

Does it protect my alternator?
Yes — automatic load management limits the draw so it won't overheat or over-draw your vehicle's alternator.

Which batteries does it work with?
LiFePO4, AGM, gel, and flooded lead-acid — the charge profile is selectable to match your bank.

How is it wired?
It connects between your starter battery and house bank, fused at each end, and charges whenever the engine is running. Our System Build Helper shows where it sits in a complete wiring diagram.

Not sure if you need a 50A DC-DC charger? Use our free Power Station Size Calculator to figure out your daily load first, then the System Build Helper to plan alternator charging into your complete electrical layout. Comparing options? See our DC-DC charger buying guide.
