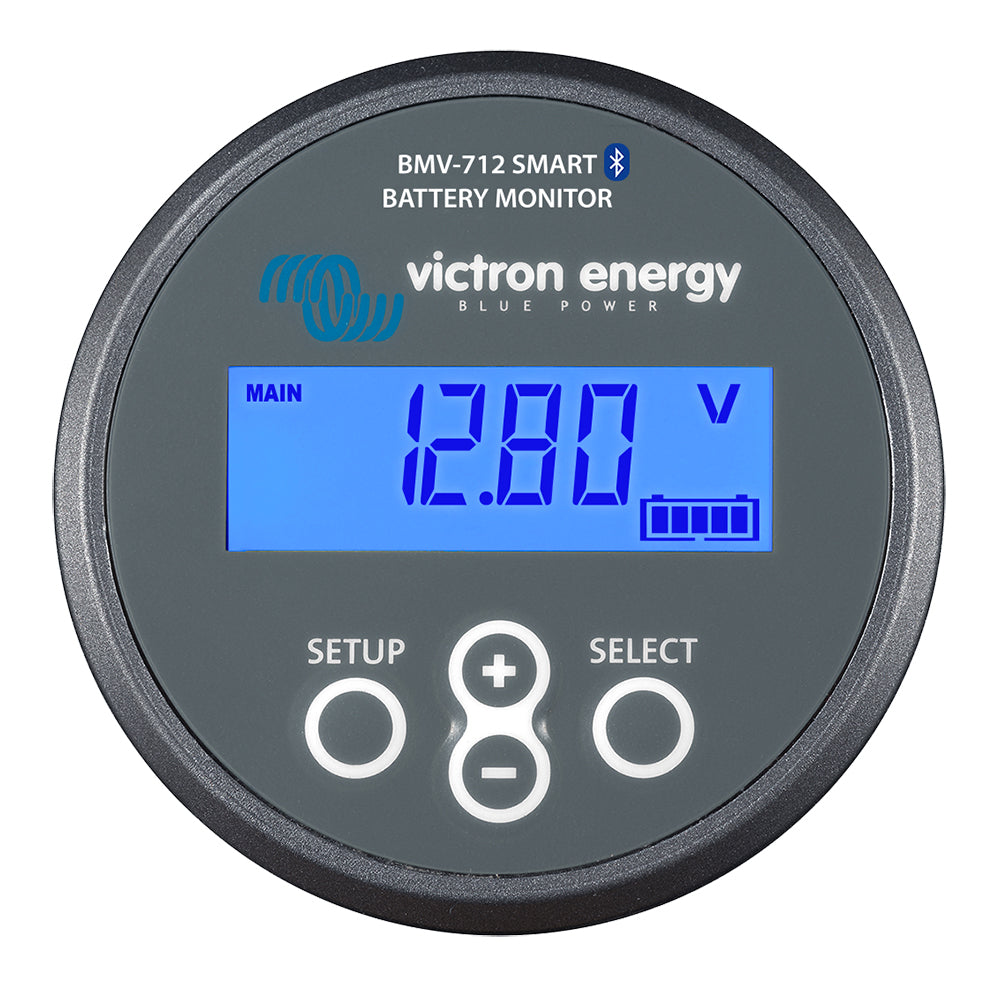

Victron BMV-712 Smart Battery Monitor
Victron BMV-712 Smart Battery Monitor
Couldn't load pickup availability
Victron BMV-712 Smart Battery Monitor
The Victron BMV-712 is the industry-standard battery monitor for van builds, overlanding rigs, RVs, boats, and off-grid cabins. It gives you a real-time, accurate readout of what your battery bank is actually doing — voltage, current in and out, state of charge, and time remaining at the current load.
Key Features
- Built-in Bluetooth — monitor your battery bank from your phone using the free VictronConnect app
- State-of-charge readout — shows exactly how much usable capacity is left, not just voltage
- Bidirectional current tracking — measures both charging and discharging current via the included shunt
- Wide battery compatibility — works with lithium (LiFePO4), AGM, gel, and flooded lead-acid banks
- Programmable alarms and relay — trigger actions or warnings based on voltage or state-of-charge thresholds

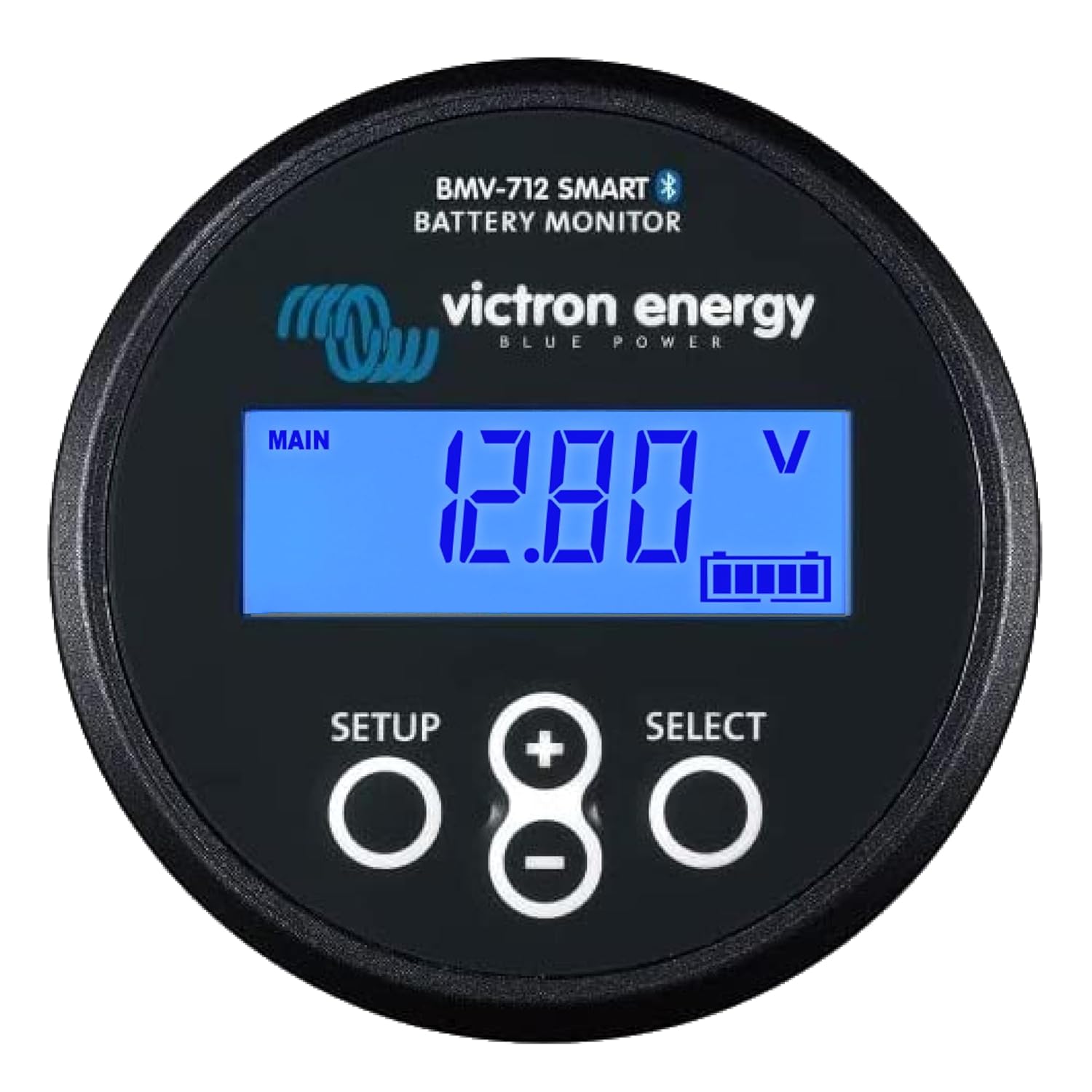

- Two color options — classic grey/white or black to match your panel
What's in the Box
- BMV-712 monitor head with display
- 500A / 50mV shunt (the current sensor that wires into your negative battery cable)
- Communication and power cables
Specifications
| Supply voltage range | 6.5 – 70 VDC (works on 12V, 24V and 48V systems) |
| Current measurement | Up to ±500 A with the included 500A / 50mV shunt |
| Battery capacity range | 1 – 9999 Ah (programmable) |
| Readouts | Voltage, current, power, amp-hours consumed, state of charge, time-to-go |
| Auxiliary input | Second-battery voltage, midpoint voltage, or battery temperature |
| Connectivity | Built-in Bluetooth (VictronConnect app) + VE.Direct port |
| Head-unit cutout | 52 mm standard round gauge hole |
| Operating temperature | -40 to +50 °C |
| Warranty | 5-year Victron warranty |
Frequently Asked Questions
Does the BMV-712 work with lithium (LiFePO4) batteries?
Yes. It works with LiFePO4, AGM, gel, and flooded lead-acid banks. Set your battery's capacity and charged-voltage parameters in the VictronConnect app and it tracks true state of charge accurately on lithium.
What's the difference between the BMV-712 and a Victron SmartShunt?
They measure exactly the same data. The BMV-712 includes a dash-mountable display head; the SmartShunt is app-only with no head. Choose the BMV-712 if you want an at-a-glance gauge on the wall, the SmartShunt if you're happy reading everything on your phone.
Does the BMV-712 have Bluetooth?
Yes — Bluetooth is built in. Monitor voltage, current, and state of charge from the free VictronConnect app; no separate dongle needed.
What else can it monitor besides the main battery?
Its auxiliary input can track a second battery's voltage (such as your starter battery), the midpoint voltage of a series bank, or battery temperature with the optional sensor.
What size battery bank does it support?
The included 500A / 50mV shunt handles continuous current up to 500A, battery capacity is programmable from 1 to 9999 Ah, and it runs on 12V, 24V, and 48V systems — so it covers everything from a single 100Ah van bank to a large off-grid array.
How is the BMV-712 installed?
The shunt goes on the negative battery rail — every load and charge source connects to the load side of the shunt so it sees all current. The head unit drops into a standard 52 mm gauge hole. Our System Build Helper shows exactly where the shunt sits in a full wiring diagram.
Pairs Well With
- Solar charge controllers and DC-DC chargers — see real-time charging current from each source
- LiFePO4 batteries — tracks usable capacity accurately on lithium banks
- TrailVault System Build Helper — plan where the shunt fits in your wiring
Comparing monitors? See our battery monitor buying guide for how the BMV-712 stacks up against the Victron SmartShunt and Renogy 500A options.
Planning your system? Use our free Power Station Size Calculator to size your battery bank, then the System Build Helper to place the shunt correctly on the negative rail.
