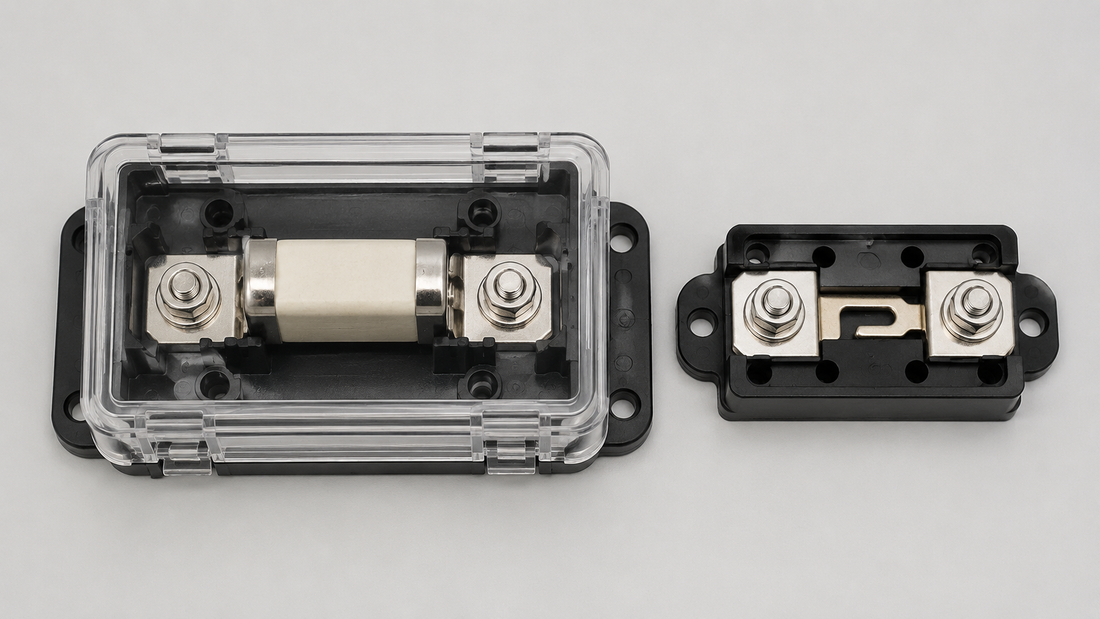

Class T vs ANL Fuses — Which One Does Your Van Build Actually Need?
Quick answer: If you have a LiFePO4 (lithium) house battery, the main battery fuse must be a Class T. ANL fuses are fine for lead-acid setups, and they’re fine downstream in a lithium build (inverter feed, large DC circuits). But the main protection at the battery positive terminal — the one that has to interrupt a dead short before your wiring catches fire — has to be Class T on lithium. The reason is one spec most builders never check: AIC.
What does the fuse actually do?
A battery fuse sits between the battery positive terminal and everything else in your system. Its job is to break the circuit if something downstream goes wrong — a chafed cable rubbing on metal, a wrench dropped across two terminals, an inverter that fails internally. When too much current flows, the fuse melts and opens the circuit before the cable insulation melts, before the battery vents, and before your van catches fire.
This is the most important $50 you’ll spend on your build. Everything else can be replaced. A battery fire usually can’t.
The spec that actually matters: AIC
Every fuse has a current rating — the amperage it’s designed to carry without blowing. That’s the number on the side (100A, 175A, 250A, etc.). Most builders pick a fuse based on this number alone.
But there’s a second number that matters far more for safety: Amp Interrupting Capacity (AIC). AIC is the maximum amount of current the fuse can safely interrupt. If a short pushes more current than the AIC rating, the fuse can’t break the circuit cleanly — it can arc, weld itself closed, or even explode.
| Fuse Type | Continuous Rating | AIC Rating |
|---|---|---|
| ANL | 35–750A | 2,500A |
| Class T | 75–800A | 20,000A |
| MEGA / AMG | 32–500A | 2,000A |
| MIDI / ANS | 23–200A | 1,000A |
ANL fuses can interrupt up to 2,500A. Class T fuses can interrupt up to 20,000A. Eight times more.
For a lead-acid battery, 2,500A is plenty — a 100Ah lead-acid bank dead-shorted will dump maybe 1,500–2,500A before voltage collapse. The ANL fuse handles it cleanly.
For a lithium (LiFePO4) battery, the math changes. A 100Ah LiFePO4 can deliver 5,000–10,000A in a dead short. The cell chemistry just doesn’t sag the same way lead-acid does — it holds voltage and keeps pushing current until something fails. An ANL fuse asked to interrupt 8,000A will fail open uncontrollably — it can vaporize, blow apart, arc across the housing, or weld closed and stay conducting. Any of those outcomes can start a fire.
A Class T fuse, with 20,000A AIC, has the headroom to interrupt that current cleanly every time.
The fire risk in plain language
Picture this scenario:
You’re running a 2/0 AWG inverter cable from your 200Ah LiFePO4 battery to a 2000W inverter. Three months into the build, vibration finally chafes through the insulation where the cable passes through the cabinet wall. Bare copper touches the chassis. Dead short.
If your main battery fuse is a 300A Class T (the right choice): the fuse interrupts the 8,000A surge in under 1 millisecond. The cable cools. You lose power. You replace the fuse and find the chafe spot.
If your main battery fuse is a 300A ANL (the wrong choice): the fuse tries to interrupt 8,000A but can only handle 2,500A. It arcs internally. The arc keeps current flowing. The 2/0 cable starts heating because there’s nothing stopping the short. Within seconds the insulation softens, melts, ignites the wall, and the van is on fire.
That’s not hypothetical. There’s a small library of YouTube van-fire investigations where the root cause traces back to an undersized or wrong-class fuse. The cost difference at install was about $50.
Where do ANL fuses still belong?
ANL fuses aren’t bad fuses — they’re the wrong fuse for main battery protection on lithium. Everywhere else, they’re great. They’re cheap, easy to find, and have a clean physical form factor.
In a lithium build, the layout typically looks like this:
- Battery (+) → Class T main fuse → Positive bus bar. This is the critical position. Class T mandatory.
- Bus bar → ANL inverter fuse → Inverter (+). The Class T upstream already protects against catastrophic short. The ANL here just protects the inverter from drawing more than it should. ANL is perfect for this.
- Bus bar → DC fuse block → 12V accessories. ANL or smaller blade fuses on each accessory circuit.
So a real lithium van build usually has both fuse types — Class T at the battery, ANL further down the line. Not either/or.
For a lead-acid setup, you can use ANL throughout, including the main position. The AIC math works out.
Side-by-side comparison
| Factor | ANL | Class T |
|---|---|---|
| AIC rating | 2,500A | 20,000A |
| Lead-acid safe? | Yes | Yes |
| LiFePO4 safe as main fuse? | No | Yes |
| Typical fuse cost | $40–55 | $50–100 |
| Fuse block cost | $40–50 | $100–160 |
| Physical size | Smaller | Larger (about 2x footprint) |
| Replacement availability | Auto parts stores carry them | Marine chandleries, online |
| Best use | Lead-acid main, lithium inverter feed, lithium DC circuits | Lithium main battery protection |
Common mistakes to avoid
Mistake #1: ANL main fuse on a lithium build “because it’s cheaper.”
The $50 you save at install is what fails when the short happens. The fire investigators always find this.
Mistake #2: Wrong-sized Class T.
Sizing the fuse to the inverter rather than the cable. A 2000W inverter at 12V is ~170A continuous, ~340A surge. A 300A Class T handles both. A 175A Class T will blow during surge events (microwave startup, AC compressor, refrigerator startup) and you’ll think the inverter is broken. Read the inverter manual’s recommended fuse size, then go one step up.
Mistake #3: No fuse block, fuse hanging in mid-air with electrical tape.
A Class T fuse without its proper block is unsafe to leave loose — terminals can touch metal, lugs can vibrate off. The Blue Sea 5502100 Class T block holds the fuse, isolates the terminals, and has a removable cover. Use it.
Mistake #4: Skipping the main fuse entirely on “small” lithium banks.
Even a 50Ah LiFePO4 battery can dump 5,000A into a dead short. Size doesn’t matter — chemistry does. If the bank is lithium and there’s any wire leaving the positive terminal, it gets fused at the terminal.
Recommended sizes for common builds
The cable can only carry so much current before melting — the fuse has to blow before the cable does. Match the fuse to the largest continuous draw plus surge headroom, not to the battery capacity.
| Build | Inverter Size | Continuous Draw | Recommended Main Fuse |
|---|---|---|---|
| Light van / overland | 1000W | ~85A | 300A Class T + Blue Sea 5502100 block |
| Standard van | 2000W | ~170A | 300A Class T + Blue Sea 5502100 block |
| Heavy van / home backup | 3000W | ~250A | 400A Class T + Blue Sea 5502100 block |
| Overland 12V-only (no inverter) | — | DC loads only | 100A ANL + 5005 ANL block — or 175A if drawing more |
| Lead-acid setup of any size | Any | Match to inverter | 100A / 175A / 250A / 400A ANL + 5005 block |
For inverter feeds further down the circuit (already protected by a Class T main), use an ANL sized to the inverter:
- 1000W inverter: 100A ANL
- 2000W inverter: 175A ANL
- 3000W inverter: 250A or 400A ANL
Bottom line
If you’re wiring lithium, your main battery fuse is Class T. There’s no debate, no “well, sometimes ANL works” exception, no acceptable budget alternative. The AIC math doesn’t bend.
ANL still has a place in a lithium build — just not in the most important position.
If you’re wiring lead-acid, ANL everywhere is fine. AGM and flooded batteries can’t deliver enough current to exceed 2,500A AIC.
The total cost difference at the main position is about $50–80. The thing it protects against is your build burning to the ground in under a minute. That’s a math problem with one right answer.
